NNC 28VDC 40A JQX-45F Power Relay NNC71H High DC Voltage Relay for Car Charging pile Solar Energy

Brand Name : NNC

Model Number : NNC71H

Certification : CE/TUV/UL/CCC

Place of Origin : China

MOQ : 600pcs

Price : get latest price

Payment Terms : T/T

Supply Ability : 2k pcs 7 days

Delivery Time : 7-14 days

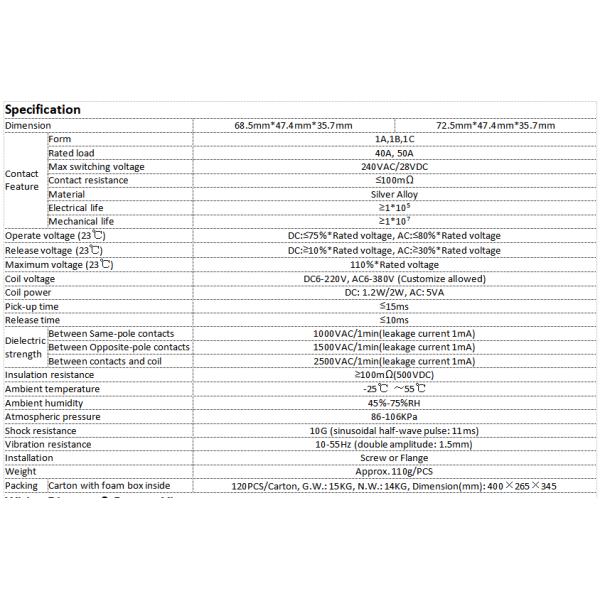

Theory : Power Relay

Contact Material : Ag Alloy

Ambient temperation : -25℃~55℃

Endurance : Mechanical life:10,000,000 times Electrical life:100,000 times

Ambient humidity : 45%-75%RH

Dielectric Strength : Between opposite pole contacts:1500VAC fo1min(leakage current 1mA)

Weight : Approx. 110g/PCS

Rated Contact load : 40A 50A

Installation : Screw or Flange

Coil power : DC:1.2W/2W AC5VAC

Pick-up time : ≤15ms

Release time : ≤10ms

Insulation resistance : ≥100mΩ（at 500VDC)

Dimension : 68.5mm×47.4mm×35.7mm

Contact resistance : ≤100mΩ
